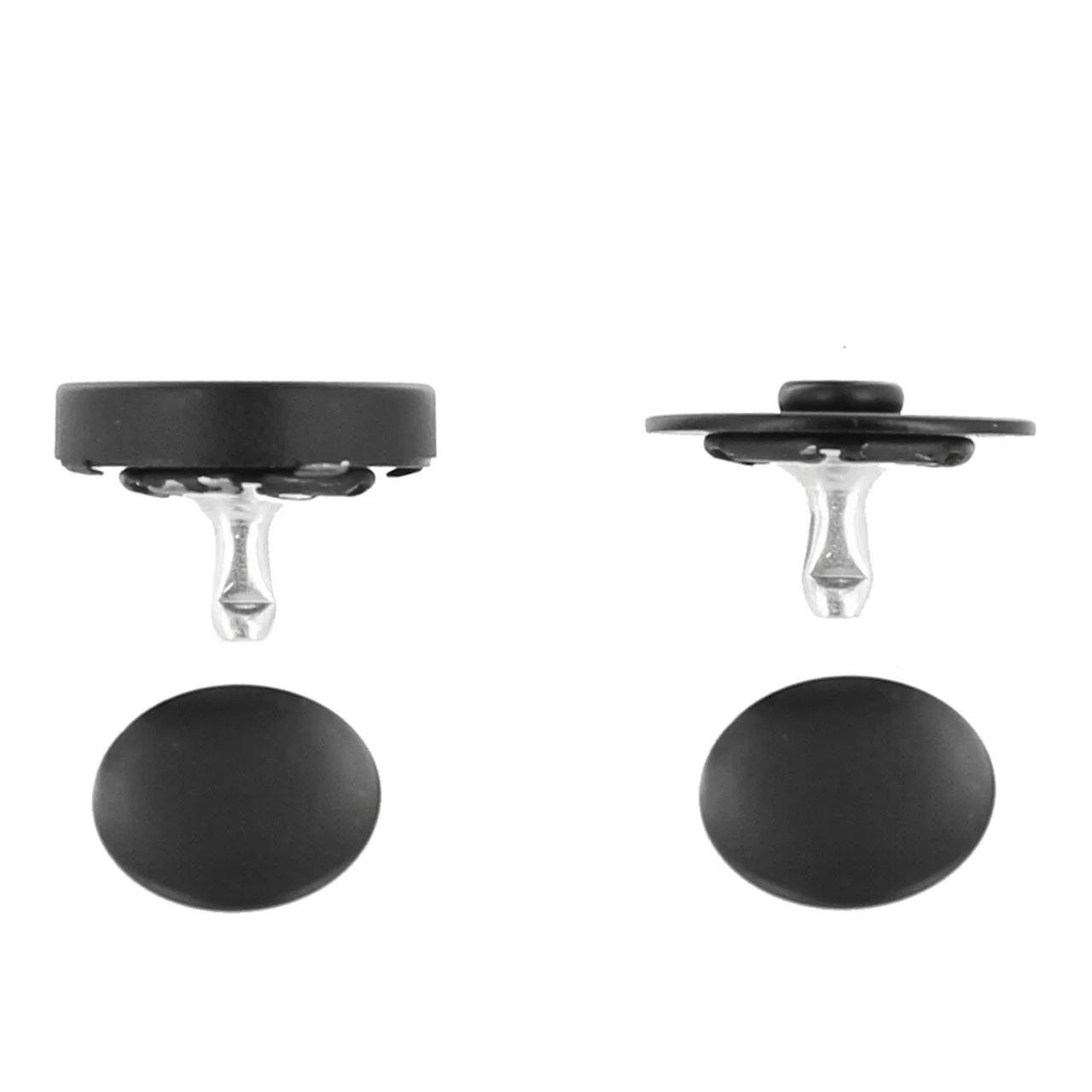

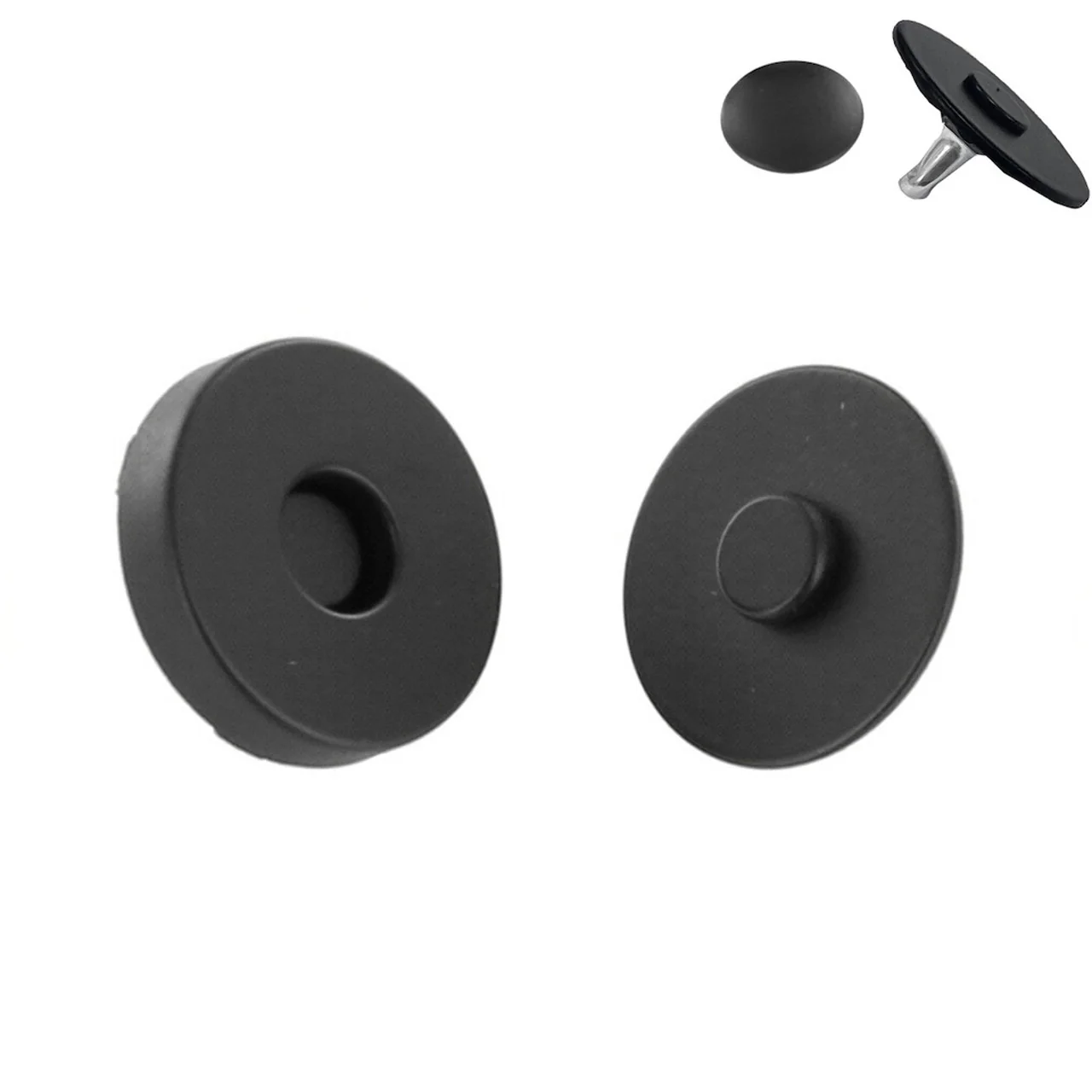

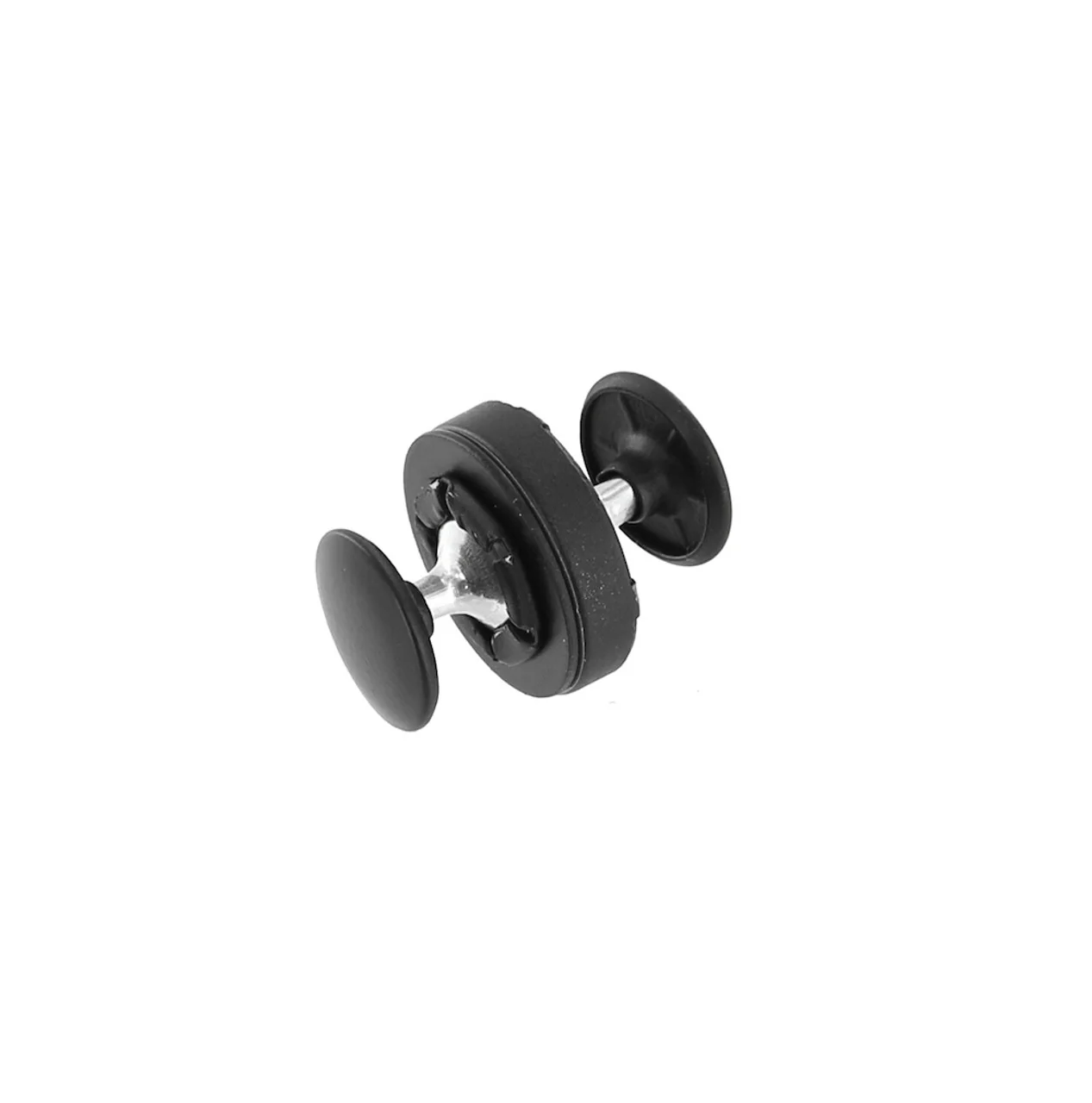

Buckleguy Magnetic Snaps w/ Riveted Backs

Style #: MAG-RDRV

Finish:

Black Matte

Setting Tools:

• Option 1: BG Magnet Setter, Stick & Base

• Option 2: BG Magnet Setter Die with Screw **Needs to be used with either BG Hand/Foot Press or BG Post and Base**



Material Thickness: Post length works with materials up to 3.6mm (9oz)

Sizes:

• 10mm / .423 in.
• Rivet Cap Diameter: 9.3mm / .365 in.
• Post Diameter: 2.8mm / 0.11 in.
• Post Length: 7.0mm / 0.27 in
• 12mm / .506 in.
• Rivet Cap Diameter: 13.3mm / .527 in.
• Post Diameter: 2.9mm / 0.11 in.
• Post Length: 7mm / 0.27 in
• 14mm / .551 in.
• Rivet Cap Diameter: 13.3mm / .525 in.
• Post Diameter: 2.8mm / 0.11 in.
• Post Length: 6.9mm / 0.27 in
• 18mm / .709 in. (THIN)
• Rivet Cap Diameter: 13.3mm / .525 in.
• Post Diameter: 3.3mm / 0.13 in.
• Post Length: 6.6mm / 0.26 in
• 18mm / .709 in. (THICK)
• Rivet Cap Diameter: 13.3mm / .525 in.
• Post Diameter: 3.3mm / 0.13 in.
• Post Length: 6.6mm / 0.26 in

 Strength:

• 10mm (4.4 lbs / 2.0kg)
• 12mm (4.4 lbs / 2.0kg)
• 14mm (5.5 lbs / 2.5kg)
• 18mm
• THICK (4.4 lbs / 2.0kg)
• THIN  (6.6 lbs / 3.0kg)

Gauss: Unit of measurement of magnetic flux density

• 10mm : 900
• 12mm : 1000
• 14mm : 1200
• 18mm
• THICK : 800
• THIN : 1300

Magnet Type: N38 Rare Earth Magnet (Neodymium)

• Click here to learn more about what rare-earth magnets are.
